Product Description
PSA Activated Alumina is a high-performance adsorbent specifically developed for Pressure Swing Adsorption (PSA) systems, finding widespread application in compressed air drying, oxygen and nitrogen generation units, and industrial gas purification systems.
Manufactured using high-quality alumina raw materials and advanced processing techniques, this product features a high specific surface area, high adsorption capacity, excellent mechanical strength, and a low attrition rate. It efficiently removes moisture and trace impurities from air or gas streams, thereby ensuring the long-term, stable operation of PSA systems.
As a proven PSA activated alumina adsorbent, it demonstrates exceptional performance across the fields of air drying, gas dehydration, and industrial gas processing.
Product Advantages
·Features a unique pore structure design that significantly enhances moisture adsorption efficiency, thereby boosting the operational efficiency of PSA systems.
·Exhibits superior compressive strength and abrasion resistance, minimizing pulverization, extending service life, and reducing replacement frequency.
·Maintains stable performance throughout frequent adsorption/regeneration cycles, making it ideal for continuously operating PSA gas drying systems.
·Facilitates easy regeneration during the Pressure Swing Adsorption process, thereby lowering energy consumption and improving overall system economics.
·Delivers consistently excellent performance even under complex operating conditions, such as high humidity and high pressure.
Product Applications
PSA Air Drying Systems
PSA Oxygen Generators
PSA Nitrogen Generators
Compressed Air Drying
Industrial Gas Drying
Hydrogen Purification
Widely applicable across industries such as petrochemicals, air separation, electronics, and energy.
Product Specifications
|
Indicator Name |
Al2O3％ |
SiO2％ |
Fe2O3％ |
Na2O％ |
Static Adsorption (wt%) |
Apparent Density (g/ml) |
Specific Surface Area (㎡/g) |
Pore Volume (ml/g) |
Strength (N/grain) |
|
Technical Parameter |
≥93.5 |
≤0.02 |
≤0.02 |
≤0.3 |
22±1 |
0.75-0.8 |
350 |
0.45-0.5 |
≥150 3-5mm |
|
≥93.5 |
≤0.02 |
≤0.02 |
≤0.3 |
22±1 |
0.75-0.8 |
350 |
0.45-0.5 |
≥210 4-6mm |

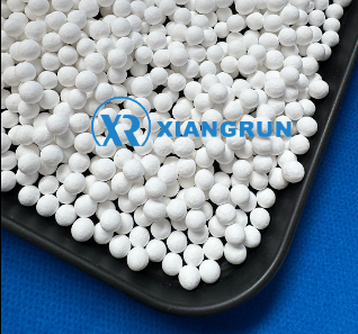

PSA Activated Alumina
Why Choose Our PSA Activated Alumina?
As a professional manufacturer of Activated Alumina, we provide high-quality PSA Activated Alumina Desiccants to clients worldwide:
Rigorous Quality Control System (ISO Standards)
Stable, Large-Scale Supply Capacity
Support for Customized Specifications
Extensive Export Experience (Global Markets)
👉 We offer not just products, but comprehensive PSA Gas Drying Solutions.
FAQ
Q1: What equipment is PSA Activated Alumina suitable for?
A: It is primarily used in PSA air dryers, oxygen generators, nitrogen generators, and industrial gas purification systems.
Q2: How does it differ from standard activated alumina?
A: PSA-specific activated alumina features higher mechanical strength, a lower attrition rate, and more stable cyclic performance, having been specifically optimized for Pressure Swing Adsorption (PSA) operating conditions.
Q3: Do you offer customized specifications?
A: Yes, we support customization regarding particle size, mechanical strength, and performance characteristics to meet the diverse requirements of various PSA systems.
