Gas Phase Air Filtration Media

Gas Phase Air Filtration Media

Gas phase air filtration media provide optimum adsorption, absorption and oxidation of a wide variety of gaseous contaminants. Gas phase air filtration media(XR2006®M activated alumina with potassium permanganate filtration media ) consists of manufactured spherical, porous pellets. Pellets...

Send InquiryChat Now
Product Details

Gas phase air filtration media provide optimum adsorption, absorption and oxidation of a wide variety of gaseous contaminants.

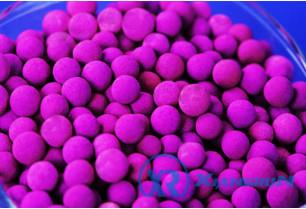

Gas phase air filtration media(XR2006®M activated alumina with potassium permanganate filtration media ) consists of manufactured spherical, porous pellets. Pellets shall be formed from a combination of activated alumina and other binders, suitably impregnated with potassium permanganate by advanced technology . The potassium permanganate shall be applied during pellet formation, such that the impregnant is uniformly distributed throughout the pellet volume and is totally available for reaction. After our processing,

XR2006®M Gas phase air filtration media's production process shall highly remove contaminant gases by means of adsorption, absorption, and chemical reaction. Gases shall be trapped within the pellet where oxidation changes the gases into harmless solids, eliminating the possibility of desorption.



Zibo Xiangrun remains a world leader in the development of air cleaning pellet(activated alumina with potassium permanganate), air-phase air filtration technologies designed to eliminate, control and provide real-time monitoring of toxic, corrosive, odorous and hazardous gases.

Gas phase air filtration media

TYPICAL PHYSICAL PROPERTIES of Gas phase air filtration media:

Potassium permanganate content: 4%, 6%, 8%, 10%, 12%

Moisture: 15wt%-22wt%

Particle Diameter: 0.5-1mm, 1-2mm, 2-3mm, 3-5mm, 4-6mm, 5-7mm,6-8mm

Shape: Spherical Pellet

Apparent Density: 0.8-0.9 g/cc

Pressure Drop @ 50 fpm (0.25 m/s): 1.0 in. of water/ft. of bed



XR2006®MGas phase air filtration mediashall meet the following removal capacities:

• HYDROGEN SULFIDE: 8% minimum by weight

• SULFUR DIOXIDE: 4.0% minimum by weight

• NITROGEN DIOXIDE: 10% minimum by weight

• NITRIC OXIDE: 2.85% minimum by weight

• FORMALDEHYDE: 1.4% minimum by weight

Item

Unit

Technical requirement

Particle size

mm

2-4

3-5

4-6

AL2O3

%

≥80

≥80

≥80

KMnO4

%

4-10

4-10

4-12

Bulk density

g/ml

0.8-0.9

0.85-0.9

0.85-0.9

Surface area

/g

≥250

≥250

≥250

Pore Volume

ml/g

≥0.42

≥0.42

≥0.42

Crushing Strength (N/Particle)

N/particle

≥50

≥80

≥100

FAQ
Q: Do you have professional team to test Gas phase air filtration media

A: Our engineer and technical team includes 10 people to research and develop activated alumina quality.
Q: How long is the service life?
A: Usually, it is about 1 year.
